Manuel Zimmer

One of the prime goals in neuroscience is to gain a comprehensive understanding of how networks of neurons operate as a single brain to produce sensations, thoughts, and behaviour. This is a challenging endeavour because of the sheer complexity of nervous systems. To address this problem, we study at our lab the nematode C. elegans which is equipped with a small and anatomically well-defined nervous system of just 302 neurons. Specifically, we combine genetics, quantitative behaviour, novel functional imaging techniques, and computational neuroscience to elucidate the neural circuits that control locomotion and chemosensory behaviours.

Neural Network Dynamics and Behaviour

In the Zimmer lab, we are interested in how neural network dynamics in the brain represent sensory information and perform computations to generate decisions and subsequent behaviors. Moreover, we aim to explain fundamental properties of neuronal circuits, for example the need to sleep. These are key problems in neuroscience, each of which have alone challenged worldwide communities of experts for decades. We, however, propose that a holistic approach should be undertaken to understand these functions in their full context. To make this goal achievable, we take advantage of the uniquely experimentally tractable model organism C. elegans, a 1mm long nematode worm that can be found dwelling in soil. C. elegans has a small nervous system of only 302 neurons with a completely mapped connectome. Despite the small size, it can produce sophisticated behaviors. In recent years, we developed new approaches to quantify C. elegans behavior in unprecedented detail and to record the activity of all neurons simultaneously in real time. These new technologies, together with the rich and efficient genetic toolkit available for the worm, will allow the first complete understanding of any nervous system’s operational principles. In the long term our holistic approach will enable us to generate a realistic in silico simulation of the brain’s properties and behaviors. We will provide a basic proof of principle working model to guide the study of higher nervous systems and the design of brain inspired computational devices.

Neuronal population dynamics in C. elegans

We developed a nuclear localized calcium indicator protein that together with fast volumetric fluorescence microscopy enables us to measure brain wide activity in real time and at single cell resolution (Movie, Figure 1A) (Schrödel et al., 2013, Nature Methods).

Movie. Pan-neuronal labelling of a C. elegans brain with a fluorescent Ca2+-indicator. Shown is a movie of maximum intensity projections from volumetric whole brain fluorescence Ca2+-imaging. The example recording is from a worm during the lethargus stage, during which animals are tired and spontaneously fall asleep, given that they reside in their comfortable milieu of 10% ambient oxygen concentrations. At 6 min recording time the animal is aroused by atmospheric oxygen concentrations (21%), which rapidly wakes it up. Upon return to 10% oxygen, the animal eventually falls back to sleep.

A milestone discovery was that most of the active neurons in the awake brain coordinate amongst each other to form collective global activity patterns, even in the absence of any sensory stimulus. Brain states with characteristic neuronal activity pattern are repeated in a cyclical fashion. This can be visualized with computational methods revealing features characteristic of dynamical systems (Figure 1A-B) (Kato et al., 2015, Cell). A thorough investigation of these neuronal population dynamics showed that they correspond to action commands and their assembly into a behavioral command sequence (Figure 1B) (Kato et al., 2015, Cell). Our findings impact the current understanding of the principles of neural network function. First, neural networks are not simple input-output devices but exhibit rich intrinsic dynamical properties that interact on par with external inputs. Second, while individual neurons can encode for detailed and important aspects of motor actions, the high-level and long-timescale organization of behavior, i.e. the assembly of action sequences, emerges collectively from the network.

Control of sleep and wakefulness

We developed a new paradigm to effectively switch between wakefulness and sleep during whole brain recordings. Animals are alerted and aroused when exposed to atmospheric oxygen levels as they prefer intermediate oxygen concentrations found in their natural habitats. During developmentally timed sleep-prone episodes termed lethargus, they exhibit sleep behavior at intermediate oxygen levels but can be effectively kept awake by atmospheric oxygen (Figure 1A-B). We found that sleep is a state of brain wide quiescence exempting a set of sleep active neurons. While behaviors in awake animals are represented by dynamic network activity, sleep appears as a stationary fixed point in neuronal state space (Figure 1B). When worms are left unperturbed this sleep state spontaneously emerges, but can be rapidly interrupted by the arousing oxygen stimulus. Our work demonstrates for the first time a global activity signature of sleep in an invertebrate, and it is the first brain-wide single cell resolution sleep study in any animal. Our results support the hypothesis stating that sleep arises via a self-organizing network mechanism; however, the brain exerts control over its global state via sleep active neurons and opposing arousal circuits (Nichols et al., 2017, Science).

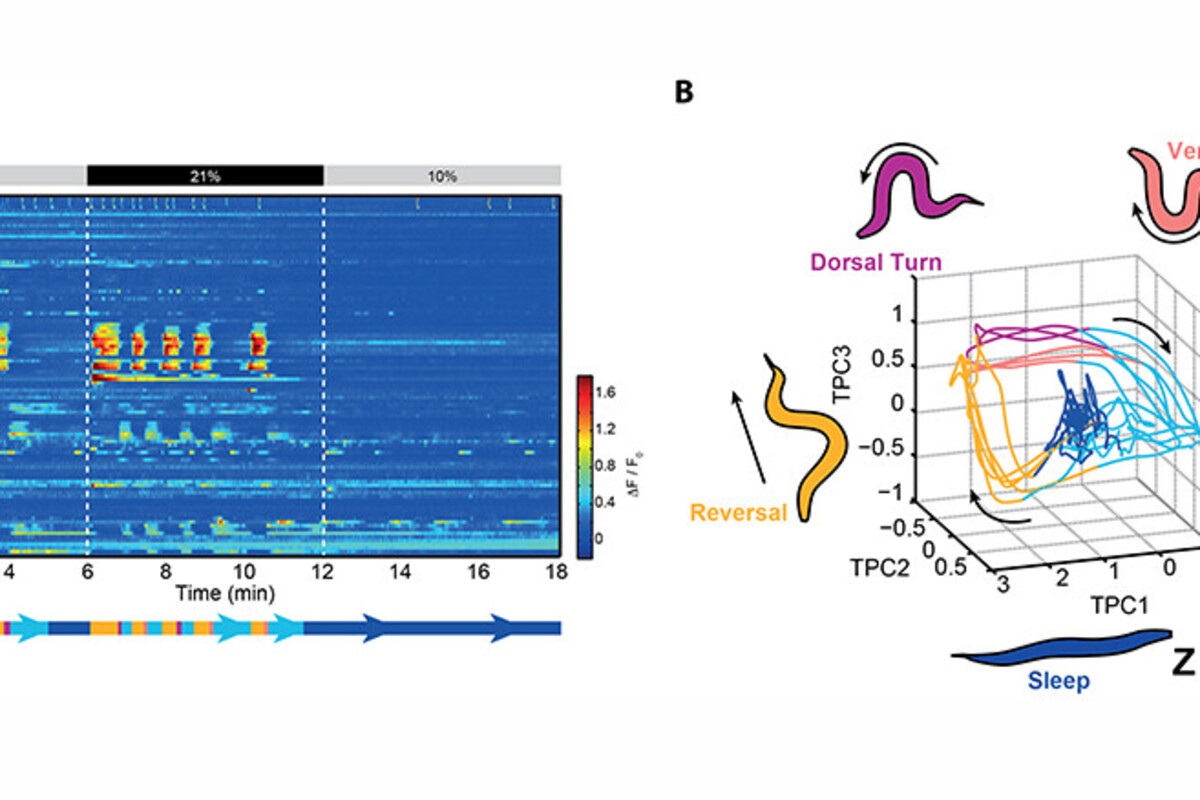

Figure 1. (A) Heatmap from the recording shown in the Movie. Each row represents the activity of a neuron over time; rows are sorted by correlation. Colors indicate relative change in fluorescence intensities. The worm is aroused by an atmospheric (21%) oxygen stimulus as indicated. During phases of arousal an action command sequence can be decoded from these neuronal activities. In the remaining time the brain resides mostly in a sleep state. (B) Time evolution of the brain state from the above recording represented by a phase plot in principal components space. Brain activity evolves on a recurrent attractor cycle that corresponds to the action command sequence (forward crawling – reverse crawling – dorsal vs. ventral turn; also shown as an ethogram below the heatmap). Behavior related brain activity corresponds to phasic attractor states on the cycle during which neuronal activities are dynamically changing (Kato et al., 2015, Cell). This is unlike sleep, which corresponds to a fixed-point attractor during which many neurons are downregulated exempting the sustained activity of sleep-active neurons (Nichols et al., 2017, Science).

Quantitative behavior

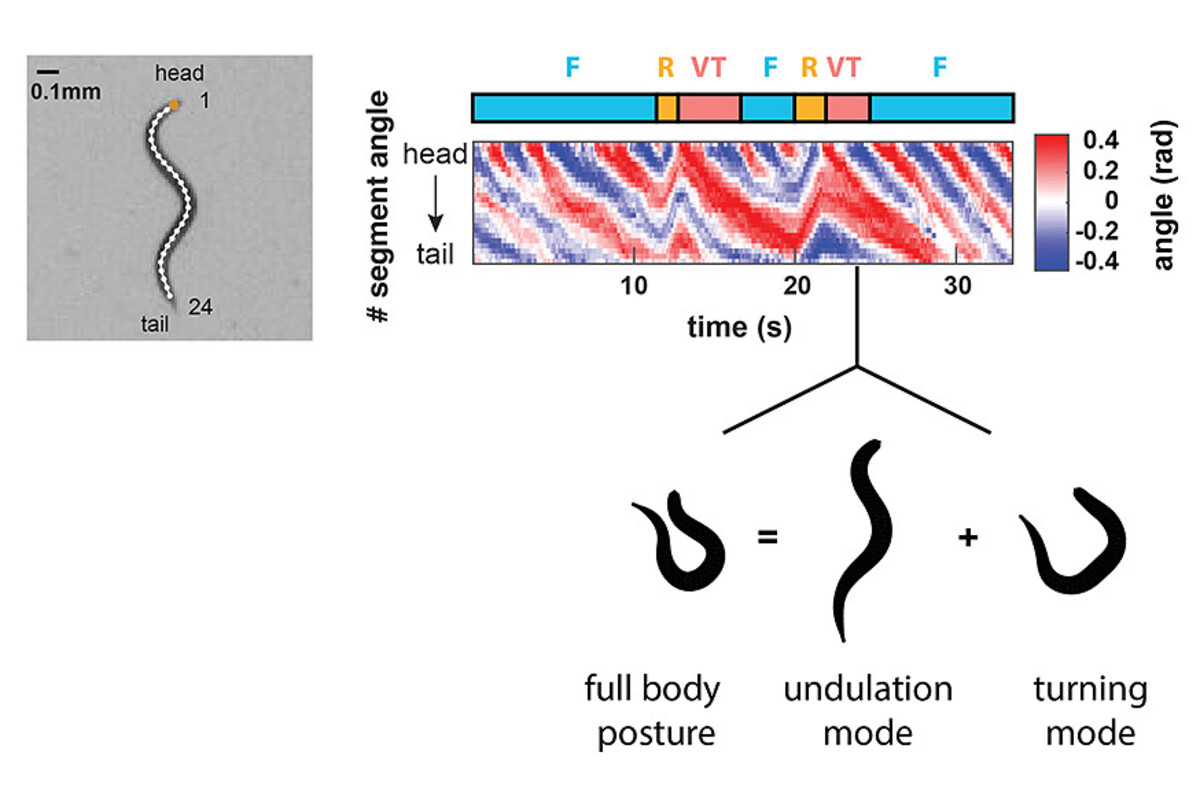

Figure 2. Behavioral analysis of C. elegans. (Left) Worms are filmed and their images skeletonized. 24 inter-segment angles are used to describe each posture. (Right) A posture time series of two consecutive action sequences as described in the ethogram above (Forward crawling – Reverse crawling – Ventral Turn). Shown below is a worm silhouette during a ventral turn. Its complex posture can be decomposed into two elementary postures termed undulation mode and turning mode. Our work shows that worms can adopt many intermediates between such extreme postures by varying the relative contribution of each elementary mode.

In order to understand brain functions we aim for a comprehensive quantitative description of its behavioral outputs. We developed high throughput behavioral recording techniques to measure the crawling movements of worms in terms of detailed posture time series (Figure 2). Using a computational method based on principal components analysis, we showed that behavior can be composed out of two elementary motor patterns: the undulation mode contributes to the stereotyped sinusoidal crawling pattern of the animals, while the turning mode contributes to steering and reorientation movements (Figure 2). We identified peptidergic interneurons (termed AVK and DVA) that can gradually control both motor patterns to achieve a spectrum of different behaviors. This work suggests that animals can flexibly generate behavioral diversity out of simple elementary movement modes (Hums et al., 2016, eLife).

Current and Future Research

In our current and future work, we combine advanced microscopy techniques for whole brain and whole nervous system imaging with quantitative behavior, molecular genetics and computational neuroscience. Our research objectives remain focused on brain dynamics crucial for nervous system function. We aim to understand the information flow from sensory inputs via decision making to behavioral output. We also aim to solve why such a system requires a sleep-wake cycle. Finally, our findings will be recapitulated in a realistic in silico simulation of brain dynamics and behavior. This holistic approach will enable us for the first time to understand the operational principles of the worm’s nervous system, which we propose are generalizable to larger animals. We are focusing on a few major objectives:

  1. To develop new microscopy approaches for whole nervous system imaging in freely behaving worms.
  2. Using whole brain imaging combined with complex sensory stimulation protocols, we are studying how sensory circuits represent features of the environment and interact with brain dynamics to control behavior. This approach will uncover the neural basis of computations and decision making.
  3. Using graph theory, we are analyzing the worm’s connectome to inform targeted optogenetic manipulations of its nervous system. Here we aim to uncover the mechanisms underlying neuronal population dynamics and to what extent neuroanatomy, i.e. network architecture, can predict neuronal functions.
  4. While neuronal population dynamics in worms represent a global framework for long timescale action sequences, it remains to be addressed how these action commands are transformed into individual actions and movement patterns at the motor periphery.
  5. How are whole brain dynamics affected by sleep deprivation and subsequent rebound sleep? Studying sleep homeostasis will shed light on a major mystery: why do animals need to sleep?
  6. We will reverse engineer the brain in a faithful comprehensive network simulation; the first one available for any complete nervous system. In collaboration with computer scientists, we will leverage this computational platform to design novel brain inspired robotics algorithms and devices.

Selected Publications

  • Nichols, ALA., Eichler, T., Latham, R., Zimmer, M. (2017). A global brain state underlies C. elegans sleep behavior. Science. 356(6344)
  • Hums, I., Riedl, J., Mende, F., Kato, S., Kaplan, HS., Latham, R., Sonntag, M., Traunmüller, L., Zimmer, M. (2016). Regulation of two motor patterns enables the gradual adjustment of locomotion strategy in Caenorhabditis elegans. eLife;5:e14116.
  • Kato, S., Kaplan, HS., Schrödel, T., Skora, S., Lindsay, TH., Yemini, E., Lockery, S., Zimmer, M. (2015). Global Brain Dynamics Embed the Motor Command Sequence of Caenorhabditis elegans. Cell. 163(3):656-69
  • Schrödel, T., Prevedel, R., Aumayr, K., Zimmer, M., Vaziri, A. (2013). Brain-wide 3D imaging of neuronal activity in Caenorhabditis elegans with sculpted light. Nat Methods. 10(10):1013-20
  • Zimmer, M., Gray, JM., Pokala, N., Chang, AJ., Karow, DS., Marletta, MA., Hudson, ML., Morton, DB., Chronis, N., Bargmann, CI. (2009). Neurons detect increases and decreases in oxygen levels using distinct guanylate cyclases. Neuron. 61(6):865-79
